105 Circuits Multi-channels Slip Rings With Through Hole For Industry

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN030-105P

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 105 circuits electric power signal

Rating Voltage : 0~380VAC/VDC

Dielectric strength : ≥1000VAC@50Hz

Isolation resistance : 500MΩ@500VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~400rpm

Contact material : Precious metal

Housing material : Aluminum alloy

Working temperature : -20°C~+120°C

Working humidity : 60%

IP protection grade : IP51

Inner Diameter : Ø30mm

External Diameter : Ø170mm

Lead wire length : Rotor: 5500mm; Stator: 2000mm

Installation : Stator side fixed on main shaft with screws

Contact Now

Industrial Through Hole Slip Rings Function with 105 Circuits Multi-channels

ECN030-105P is CENO’s customized slip ring with 105 circuits for electrical power, current including 100A, 50A, 25A, 10A, 5A, 2A and option as special applications. In CENO, multi-channel slip ring refer to conductive slip rings with more than 50 channels and circuits can be up to 500 circuits, which can integrate high current, low current, digital / analog signals, optical fiber, RF signal or pneumatic /Hydraulic. Working speed is 0~400rpm or higher as customized and still maintains the long life characteristics of the product. More information please contact us.

Features

  • Multi-channels design with Multiple electronics options
  • Through hole design & ID size Ø3mm - Ø1000mm option
  • Can be integrated various data

Applications

  • Automatic machine
  • Turntable plat
  • Intelligent housing system
  • Communication system
  • Engineering Machinery

Optional

  • Circuits, Voltage, Currents
  • Inner /outer diameter
  • Contact / Housing Materials
  • Working temperature
  • Working speed

Specification

ECN030-105P

 Specification
Current & Circuits 105 circuits electric power signal
Rating Voltage 380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance 500MΩ@500VDC
Contact resistance 30mΩ (50rpm)
Temperature -20°C~+120°C
Working humidity 60%RH
IP protection grade IP51
Operating speed 0~400rpm
Inner Diameter Ø30mm
External Diameter Ø170mm
Lead wire length Rotor: 5500mm; Stator: 2000mm
Installation Stator side fixed on main shaft with screws
Contact Material Precious Metal
Housing Material Aluminum Alloy

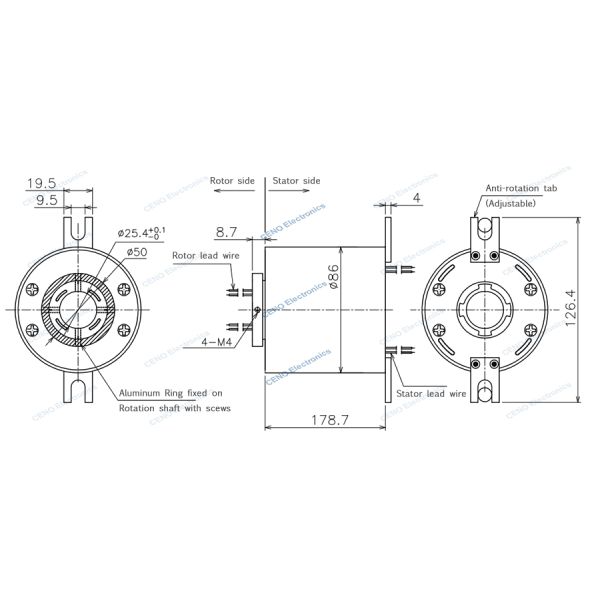

Outline Drawing

105 Circuits Multi-channels Slip Rings With Through Hole For Industry

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

105 Circuits Multi-channels Slip Rings With Through Hole For Industry

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

105 Circuits Multi-channels Slip Rings With Through Hole For Industry

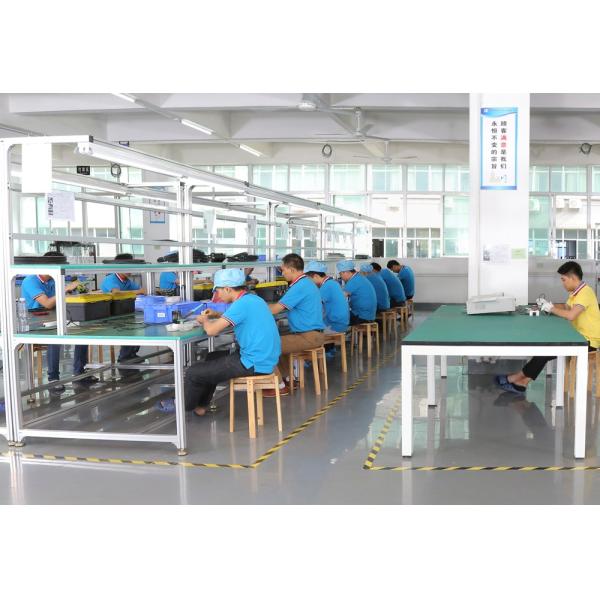

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

105 Circuits Multi-channels Slip Rings With Through Hole For Industry

105 Circuits Multi-channels Slip Rings With Through Hole For Industry

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
