10 Channels MM Integration Fiber Optic Rotary Joint with Slip Ring Insertion Loss 3.5dB

Name: 10 Channels MM Integration Fiber Optic Rotary Joint with Slip Ring Insertion Loss 35dB
Brand: CENO
Price: 1 USD

Wholesale 10 Channels MM Integration Fiber Optic Rotary Joint with Slip Ring Insertion Loss 3.5dB from china suppliers

Brand Name : CENO

Model Number : ECN000-0550-10F

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 weeks

Packaging Details : Cartons/As request

Current & Circuits : Electric Power & Fiber Optic

Return loss : ≥40dB

Insertion Loss : <3.5dB

Rating Voltage : 0-400VAC/VDC

Dielectric strength : ≥1500VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Contact resistance : ≤30mΩ (50rpm)

Contact material : Precious Metal

Housing material : Aluminum alloy

Working temperature : -10°C~+60°C

Working humidity : 60 %RH

IP protection grade : IP65

Operating speed : 0~100rpm

Outer diameter : Ø125mm

Lead wire size : As Request

Lead wire length : As Request

Contact Now

10 Channels MM Integrate FORJs Slip Ring with Fiber Optic Rotary Joint

ECN000-0550-10F is CENO new integrate FORJs slip ring which combine circuits Electric power and Channels Fiber Optic. Fiber optic rotary joints (FORJs) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. Often ruggedized for harsh environments. For more information please contact us.

Features

Integrate FORJs with Electric
Rugged and durable, suitable for harsh environments
Various configuration options
Custom designs available

Applications

Remote control system
Radar system
Offshore and marine system
Video surveillance system
Rotating turret on the vehicle

Optional

Circuits, Voltage, Current
Channels and Fiber type
Wavelength
Protection grade
Working speed

Specification

ECN000-0550-10F	Specification
Current & Circuits	Electric Power & Fiber Optic
Rating Voltage	0-400VAC/VDC
Dielectric strength	≥1500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance	≤30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum alloy
Working temperature	-10°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~100rpm
Outer diameter	Ø125mm
Lead wire size	As Request
Lead wire length	As Request

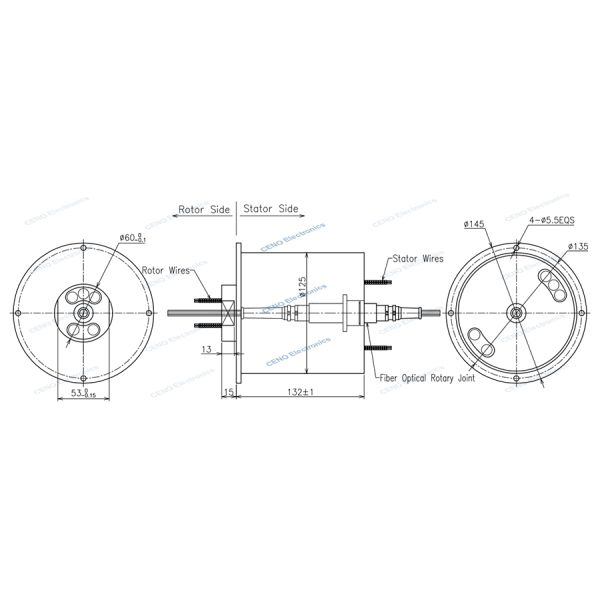

Outline drawing

10 Channels MM Integration Fiber Optic Rotary Joint with Slip Ring Insertion Loss 3.5dB

CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.

10 Channels MM Integration Fiber Optic Rotary Joint with Slip Ring Insertion Loss 3.5dB
