Capsule Low Temperature Gigabit Ethernet Slip Ring 0 - 250rpm For Industry

Product Categories
CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Capsule Low Temperature Gigabit Ethernet Slip Ring 0 - 250rpm For Industry

Brand Name : CENO

Model Number : ACN25-08P2-16S-01EG

Certification : CE,RoHS,UL,ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union, L/C

Supply Ability : 10000pcs month

Delivery Time : Off the shelf

Packaging Details : Carton

Circuit number & Current : 8circuit*10A; 16circuits*2A;1Group*1000M Ethernet

Voltage : 0~240 VAC

Protection grade : IP51

Operating Humidity : 60%RH

Working speed : 0~250rpm

Working temperature : -40℃~+80℃

Contact & Housing material : Precious metals

Dielectric strength : ≥500VAC@50Hz

Isolation resistance : ≥500MQ@500VDC

Electrical noise : ≤10mΩ (50rpm)

Housing material : Aluminum alloy

Contact Now

Capsule Low temperature Gigabit Ethernet slip ring for industry

ACN25-08P2-16S-01EG is an low temperature -40°C capsule slip ring with gigabit Ethernet signal from CENO Electronics. There are 8circuits for 10A, 16 circuits for 2A and 1 group 1000M Ethernet signal. CENO’s high / low temperature slip ring is designed for the high or low temperature environment in nature, and also many mechanical and electrical equipment working in artificially set special high temperature environment, and the conductive slip ring used in these equipment, naturally also need to have the same temperature resistance performance as the equipment.



Features

  • Anti-corrosion, ageing resistance
  • Stable perfomance
  • Install easily
  • Low temperature resistance

Applications

  • Automatic machine
  • Tripod head
  • Aviation instruments
  • High altitude airborne

Optional

  • Circuit number & Current
  • Working speed
  • IP Grade & Signals
  • Capsule size


Specification

ACN25-08P2-16S-01EG

 Specification
Current & Circuits 8circuit*10A; 16circuits*2A;1Group*1000M Ethernet
Rating Voltage 0~240 VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥500MQ@500VDC
Electrical noise ≤10mΩ (50rpm)
Lead wire length

Rotor : 500mm±10mm

Stator : 1000mm±30mm
Operating speed 0~250rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -40°C~+80°C
IP protection grade IP51

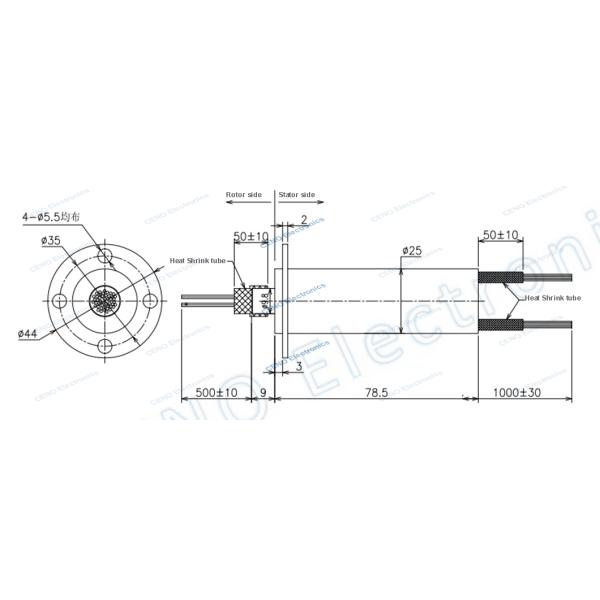

Outline drawing

Capsule Low Temperature Gigabit Ethernet Slip Ring 0 - 250rpm For Industry




Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
