Aluminum Alloy Integrated Slip Ring Combined Power Signal With Fiber Optical Rotary Joint

Brand Name : CENO

Model Number : ECN000-08P2-30S-03EM-01F

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Circuits : 8circuits*10A, 30circuits*1A, 3group*100Mbps

Rating Voltage : 0~220VAC/VDC

Dielectric strength : ≥500VAC@50Hz

Isolation resistance : ≥500MΩ@500VD

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~100rpm

Working temperature : -40°C~+80°C

IP protection grade : IP51

Working humidity : 60%

Lead wire length : Rotor : 1000mm Stator : 1000mm

Contact material : Precious metal

Housing material : Aluminum alloy

Fiber type : Single mode

Wave length : 1310-1550nm

Insert loss : <2.0dB

Return loss : ≥30dB

Insert loss deviation : ≤±0.5dB

Contact type : SC

Contact Now

Integrated slip ring combined with fiber optic rotary joint and power

ECN000-08P2-30S-03EM-01F is an integrated slip ring combined power signal with fiber optical rotary joint. There are 8 circuits for 10A electrical power, 30 circuits for 1A signals, 3 group for Megabit Ethernet and 1 channel single mode fiber optical. Most of the Integrated slip ring are customize product for special application, so the fiber type, signal mode, wavelength, operation speed and signal types are optional. Due to integrated slip ring adopt the advantage non-contact technology, it is free from electromagnetic interference and long working life.

Specification

ECN000-08P2-30S-03EM-01F

 Specification
Current & Circuits 8circuits*10A, 30circuits*1A, 3group*100Mbps
Rating Voltage 0~220 VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical noise ≤30mΩ (50rpm)
Lead wire length

Rotor : 1000mm

Stator : 1000mm
Operating speed 0~100rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -40°C~+80°C
Working humidity 60%
IP protection grade IP51
Fiber Specification
Fiber type Single mode
Wave length 1310-1550nm
Insert loss <2.0dB
Return loss ≥30dB
Insert loss deviation ≤±0.5dB
Contact type SC

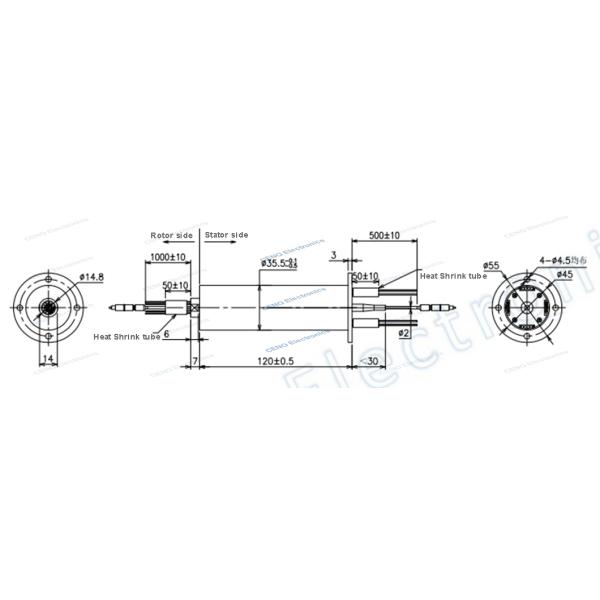

Outline drawing

Aluminum Alloy Integrated Slip Ring Combined Power Signal With Fiber Optical Rotary Joint

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Aluminum Alloy Integrated Slip Ring Combined Power Signal With Fiber Optical Rotary Joint

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Aluminum Alloy Integrated Slip Ring Combined Power Signal With Fiber Optical Rotary Joint

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
